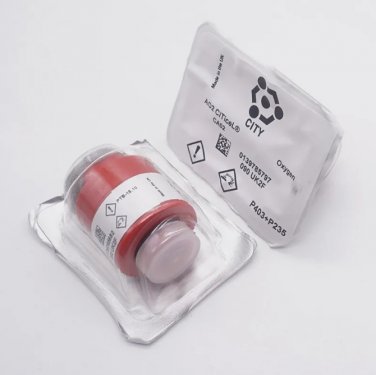

AO2 PTB-18.10 Gas O2 Sensor 0-100% Oxygen Linear Output Molex Connector
Oxygen sensor AO2 for automobiles, the AO2 PTB-18.10 oxygen sensor used on the oxygen index tester is a consumable product. When it comes into contact with the air, a chemical reaction occurs. Generally, the validity period of use is one year, and the packaging of the oxygen sensor must be It is sealed, usually sealed in a sealed plastic package filled with nitrogen, and the best storage temperature is between 0 degrees and 20 degrees.
Application range:
Oxygen sensors are widely used and are widely used in coal mines, steel, petrochemical, medical, automotive sensors (built-in thermistor), etc.
Technical Specifications:
Operating Principle Partial Pressure Electrochemical
Measurement Range 0-100% O2
Output 9 - 13 mV in Air
Response Time (T90) ＜5S
Baseline Offset 20uV
Linearity Linear 0-100% O2
LifeTime:
Long Term Ouput Drift in 100% O2
